PARAMETRIC TREND CURVES AND ACCEPTANCE CRITERIA

Reference MIL-STD-202, Method 305

Test Frequency: 1000 Hz

Temperature: +25°C

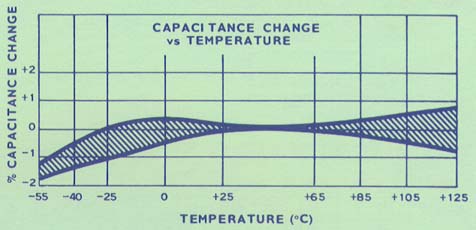

Capacitance Change Over Temperature.

Acceptance Limits:

@ -55°C = -2% Maximum Change

@ +85°C = ±1% Maximum Change

@ +125°C = ±2% Maximum Change

Reference MIL-STD-202,

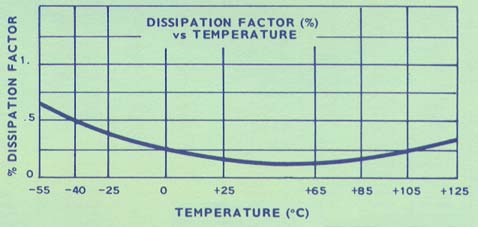

Method 306

Test Frequency: 1000 Hz

Temperature: +25°C

Acceptance Limit: 0.30% Maximum

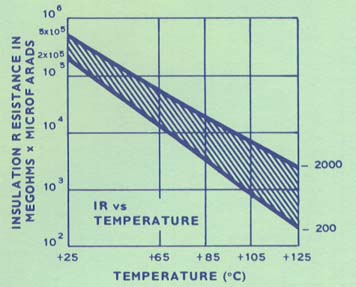

Reference MIL-STD-202, Method 302

Electrification shall be at rated voltage

or 500 VDC, whichever is less and for

a time not greater than 2 minutes.

Acceptance Limits:

100% of listed voltage rating from -55°C to +125°C.

Reference MIL-STD-202, Method 301. Surge current is limited to 1 ampere maximum. Voltage applied for 1 minute (maximum) @ +25°C. Ground test is performed terminal to case (where the case is not a terminal) at 200% of the DC voltage rating. Dielectric strength test is performed terminal to terminal at 200% of the DC voltage rating.
